Chamberlain Merlin E8003 Add On Garage Door Motor Receiver Suits Security +2.0 Remotes

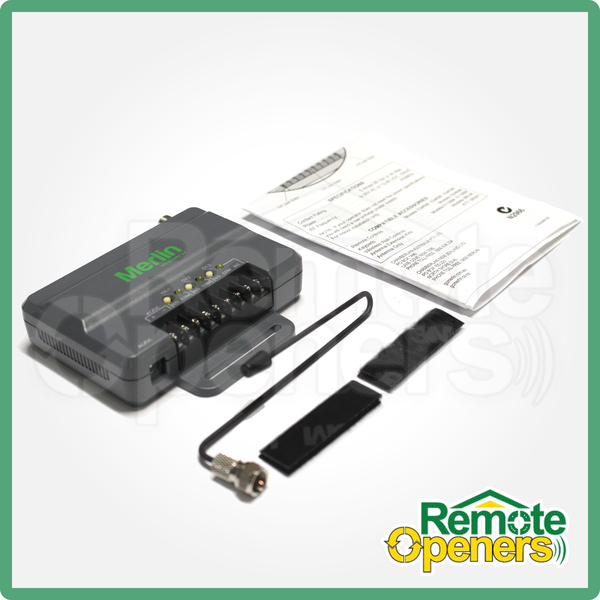

Listing Includes

  • 1 x Merlin E8003 Add on receiver Security +2.0
  • 1 x Antena
  • 2 x 3m Adhisive Velcro strips
  • 1 x Easy to follow Instructions

​

Description

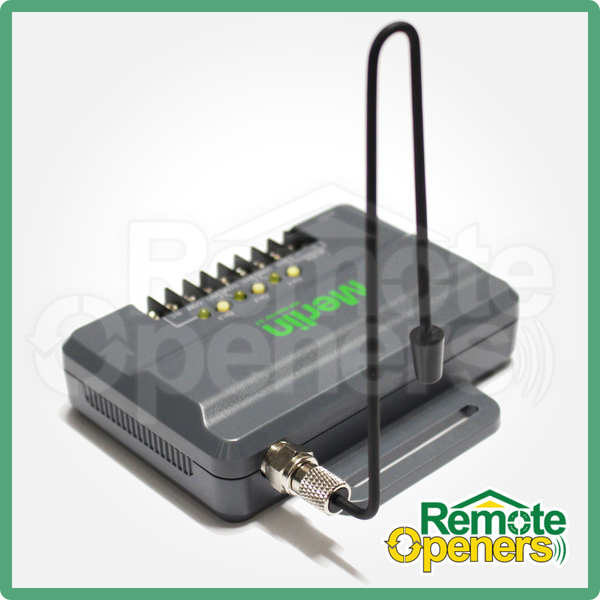

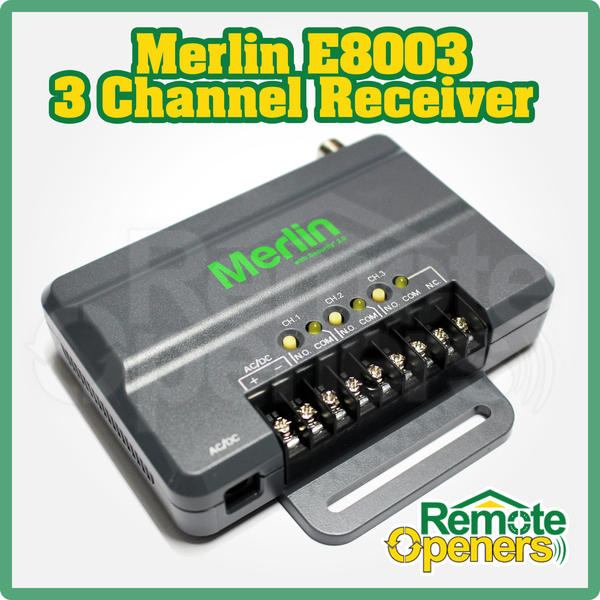

Brand New Merlin E8003 Add on receiver Security +2.0. The receiver can be used as a single or three channel receiver to control up to 3 gates, commercial operators or residential door openers. The receiver can also be used with a 3-button remote control to operate the OPEN, CLOSE, and STOP feature on a commercial door operator. The receiver is not for use with MyQTM enabled garage door openers or devices.

Each channel is compatible with a specified number of remote controls and keypads. Refer to the list below:

  • CH1: 50 remote controls and 2 keypads
  • CH2: 20 remote controls and 2 keypads
  • ​CH3: 20 remote controls and 2 keypads

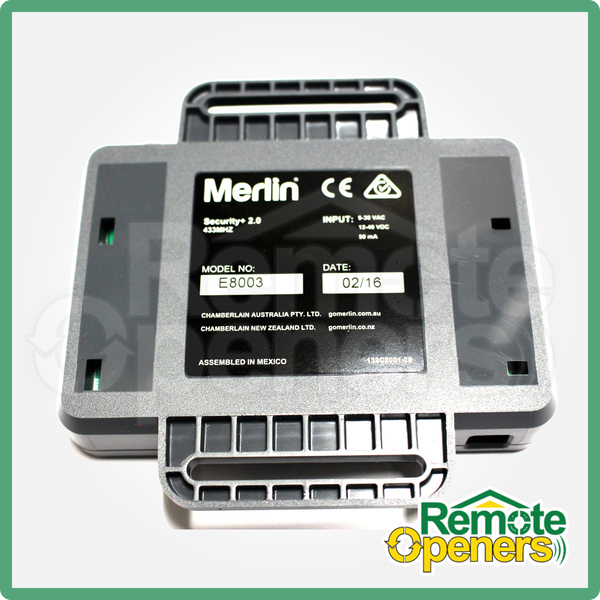

SPECIFICATIONS
Contact Rating. . . . . . . . . . . . . . . . 5 Amps 28 Vac or dc Max.
Power . . . . . . . . . . . . . . . . . . . .9-30V AC or 9-34V DC, 50mA
RF Frequency:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 433MHz
NOTE: If your operator does not meet the power specifications
you will need a low voltage power supply.
For indoor installation only.


COMPATIBLE ACCESSORIES


Remote Controls . . . E970M, E980M, E945M, E940M, E943M,
Keypads. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E840M
Wireless Wall Controls . . . . . . . . . . . . E148M, E138M, E128M
Antenna Extension Kits . . . . . . . . . . . . . . . . . . . . . . . . G86LMT,
Antenna Only. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .K77-36541



NOTE: If your operator does not meet the power specifications you will need a low voltage power supply.
For indoor installation only. (No Hand sets includerd)



Warranty - 12 Months Money Back or Replacement



SKU E8003
Model # CM8002PCB-ANZ
Barcode # 9417593080035
Brand Merlin Garage Door Openers
Shipping Weight 0.2500kg
Shipping Width 0.140m
Shipping Height 0.050m
Shipping Length 0.160m
Shipping Cubic 0.000002000m3
Assembled Length 0.100m
Assembled Height 0.030m
Assembled Width 0.110m
Type Genuine
