GRIFCO LR-Drive Motor For Commercial Steel Spring-Balanced Roller Door or Grille
MyQ Compatible Roller Door Operator
GRIFCO LR-Drive Roller Door Opener For Commercial Steel Spring-Balanced Roller Door

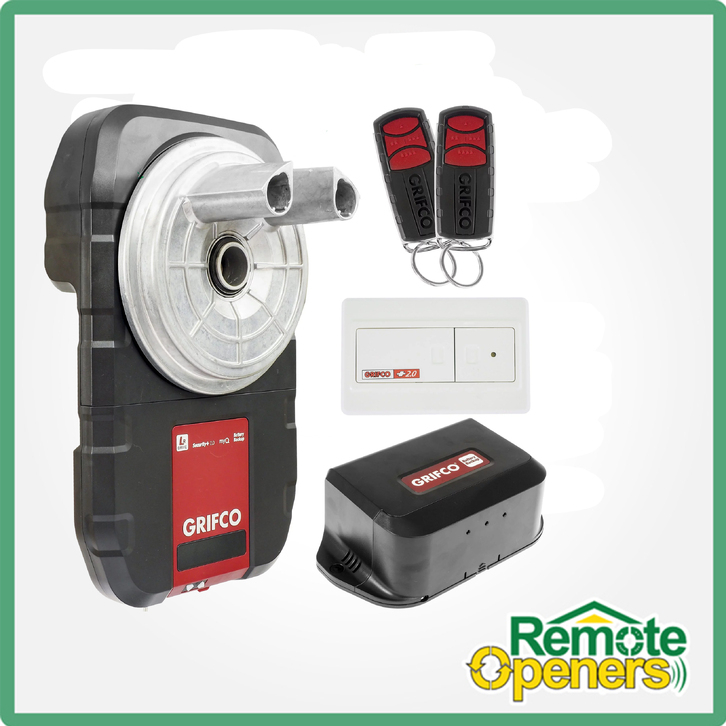

Listing Includes:
-
1 x Grifco LR-Drive Roller Garage Door Opener
-

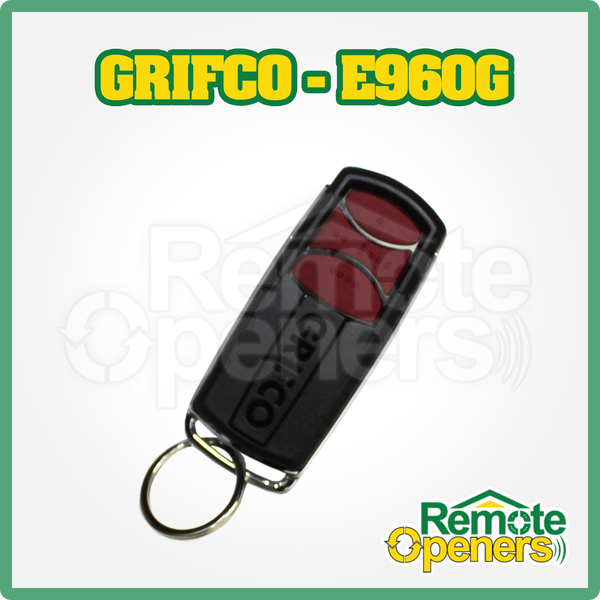

2 x E960G, 4 channel Transmitter
-

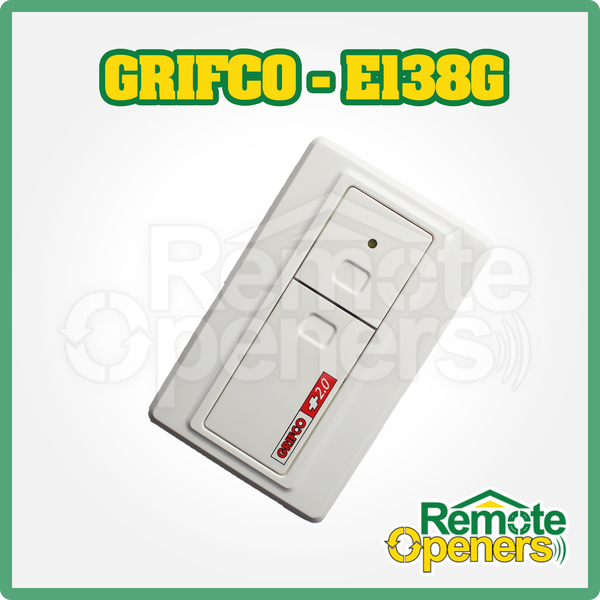

1 x E138G Wireless wall control
-
1 x Battery Back Up Unit
-
Installation Hardware
-
Installation Manual
-
FREE Delivery
Features
-
Faster: LR-Drive opens a 2.4m high door in only 21 seconds. Fastest in its class!
-
Stronger: The powerful motor and gearbox can lift roller doors up to 28m²
-
Thinner: The incredibly thin operator requires only 45mm of sideroom clearance
-
Smarter: LR-Drive is myQ compatible and features dedicated inputs for open / close
Description
The LR-Drive is specially designed to operate light commercial roller doors ideal for large roller doors or retail shopfront roller grills. Perfect automation solution with several benefits for users, installers and service technicians.Its well thoughtful design and advance features makes it an ideal choice for light commercial roller doors.
Technical Specifications
Power Supply | 230-240 VAC 50Hz |
Max. Pull Force | 1300N |
Max. Door Cycle | 50 cycles/day |
Door Speed | 14.2cm/sec |
Max Door Size |
28m²
22m² wind-locked
|
Max Door Weight | 270kg |
Door Type | Commercial Steel Spring-Balanced Roller Door or Grille |
Side Room Clearance | 45mm between door drum and mounting bracket |
Max Door Height | 5.5 m |
WARRANTY: 2 Years / 10,000 Cycles
WARNING! This product contains Lithium coin batteries.
KEEP BATTERIES OUT OF REACH OF CHILDREN. Never allow children to replace button batteries on any device. Swallowing or placing inside any part of the body may lead to severe or fatal injuries in as little as 2 hours or less due to chemical burns and potential perforation of the oesophagus.
If you suspect your child has swallowed a button battery or placed inside any part of the body immediately call the POISONS INFORMATION CENTRE on 13 11 26 for prompt advice. If your child is having any difficulty breathing, contact 000.
Dispose of used button/coin batteries immediately and safely. A battery can still be dangerous even when it can no longer operate the device. Place sticky tape around both sides of the battery and dispose of it immediately out of reach of children in an outside bin or recycle safely.
For more information please review the button battery safety information available on the Australian Competition & Consumer Commission (ACCC) website.
SKU | GLD-RDO |
Model # | GLD-RDO |
Brand | Grifco |
Shipping Weight | 14.0000kg |
Shipping Width | 0.250m |
Shipping Height | 0.230m |
Shipping Length | 0.400m |
Shipping Cubic | 0.023000000m3 |
Unit Of Measure | ea |
Assembled Length | 0.400m |
Assembled Height | 0.230m |
Assembled Width | 0.250m |
Type | Genuine |
