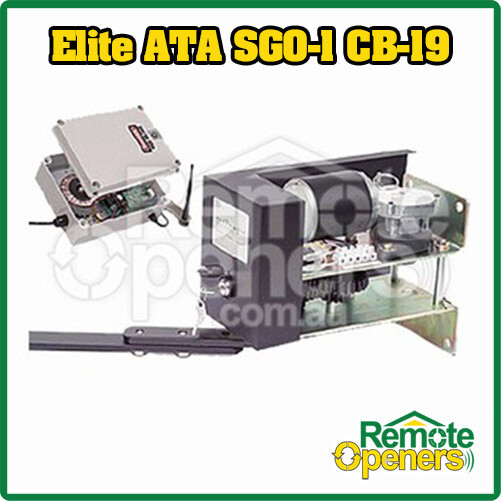

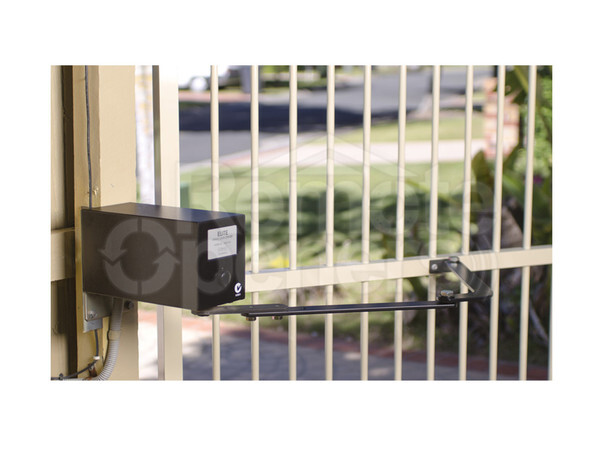

ATA Elite® Single Swing Gate Opener with DCB-05v2 Control Box kit

SGO-1v4 Elite Single Swing Gate Opener for residential gates up to 4 meters long and 250-300 kgs per leaf.

Listing Included

• 1 x Drive unit  &  1 x Control Box
• 2 x PTX5V2 TrioCode Remotes with batteries
• Pre wired Aerial and power plug
• Installation Instructions
• 2 Manual release keys

SPECIFICATIONS

CONTROL BOX DCB-05

PROTECTION RATING: IP56

INPUT VOLTAGE: 230V- 240V AC 50Hz

SECONDARY VOLTAGE: 24V AC 100 VA

CONTROLLER VOLTAGE: 24V DC

RECEIVER TYPE: UHF 433.92 MHz. AM Receiver

RECEIVER CODE STORAGE CAPACITY:30 x 4 Button Transmitter Codes

TRANSMITTER FREQUENCY: 433.92 MHz

CODING TYPE: TrioCode® Hopping Code

No. of CODE COMBINATIONS: Over 4.29 Billion Random Codes

CODE GENERATION: Non-linear Encryption Algorithm

TRANSMITTER BATTERY: A23 Alkaline 12 Volts

DIMENSIONS: 190W x 240H x 100D (mm)

WEIGHT: 4Kg

DRIVE UNIT

MOTOR TYPE: Permanent Magnet Direct Current

MOTOR VOLTAGE: 24V DC

MAXIMUM PULLING FORCE: 200N (20Kg)

DRIVE ARM ROTATION SPEED: approx. 8°/sec

DIMENSIONS: 135W x 290H x 230D (mm)

WEIGHT: 13Kg (incl. arms)

Note:

1. The maximum weight gate that the opener can be installed on 250Kg. The gate must be well balanced. A person of limited strength

should be able to move the gate manually with very little effort (15Kg force max.) in case of an emergency.

2. Intermittent operations may occur in areas which experience very strong wind gusts. A strong wind puts extra pressure on the gate

which may in turn trigger the safety obstruction detection system intermittently.

This motor is completely DIY-able - you only require minor tools for installation

Warranty - 2 Year



WARNING! This product contains Lithium coin batteries.

KEEP BATTERIES OUT OF REACH OF CHILDREN. Never allow children to replace button batteries on any device. Swallowing or placing inside any part of the body may lead to severe or fatal injuries in as little as 2 hours or less due to chemical burns and potential perforation of the oesophagus.

If you suspect your child has swallowed a button battery or placed inside any part of the body immediately call the POISONS INFORMATION CENTRE on 13 11 26 for prompt advice. If your child is having any difficulty breathing, contact 000.

Dispose of used button/coin batteries immediately and safely. A battery can still be dangerous even when it can no longer operate the device. Place sticky tape around both sides of the battery and dispose of it immediately out of reach of children in an outside bin or recycle safely.

For more information please review the button battery safety information available on the Australian Competition & Consumer Commission (ACCC) website
