B&D SDO-6 Secure For Sectional/Tilt Doors
Genuine product with fast dispatch!

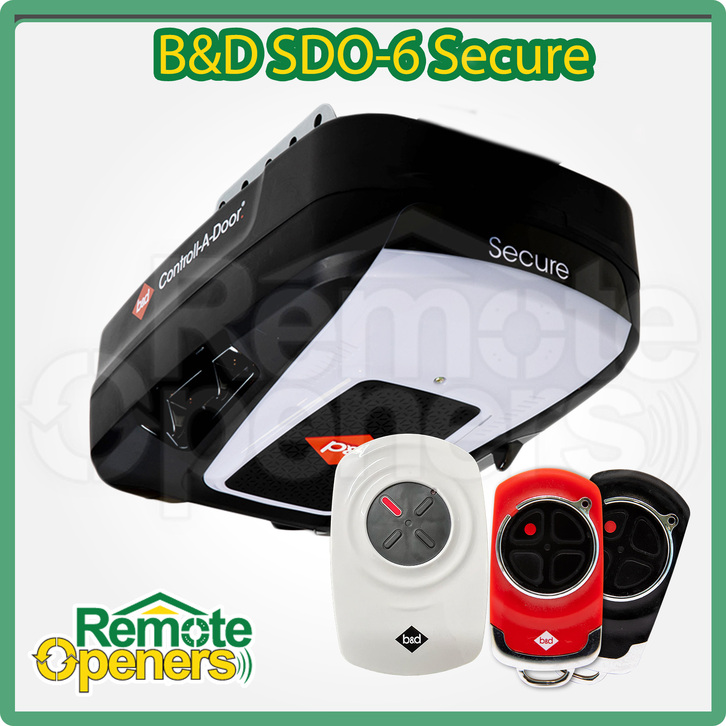

B&D SDO-6 Secure Sectional Panel Tilt Door Opener 87910
Listing Includes
- 1 x B&D Secure SDO-6 Powerhead

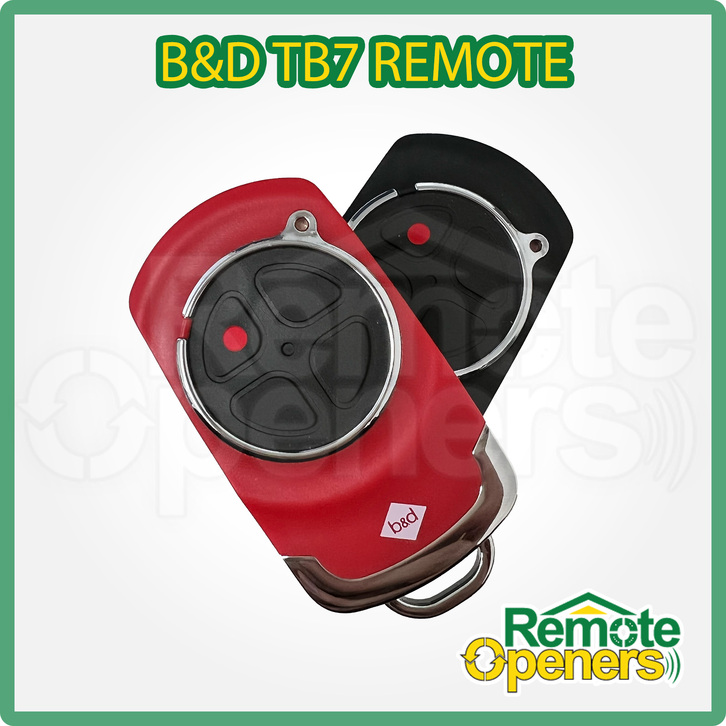

- 2 x B&D TB7 Remotes

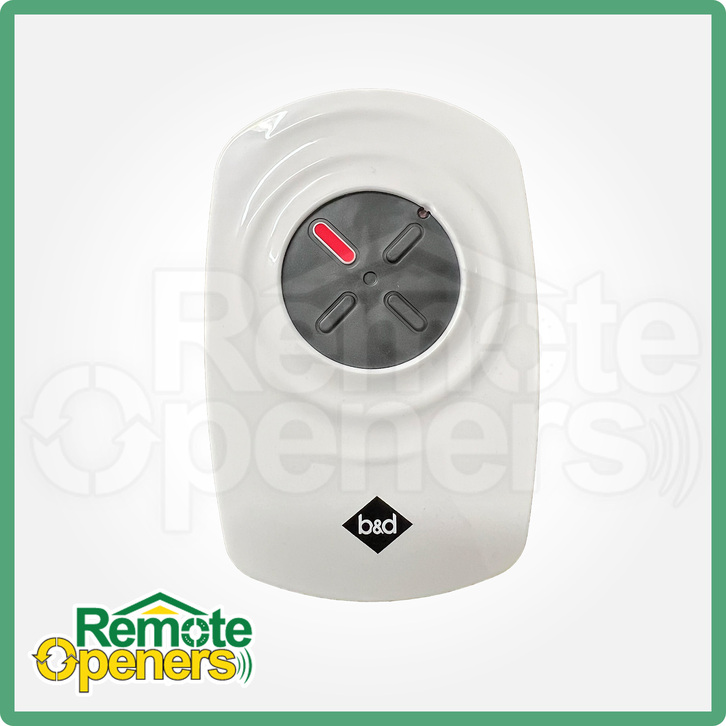

- 1 x B&D WTB8v1 Wall Button Transmitter
- Installation Manual
- FREE Delivery
Please note that rail is not included with your purchase. However, you have the option to purchase rail separately. You can either arrange for pick-up or organize your own transport for the rail.
Specifications
Rated Voltage Range |
230V - 240Va.c |
Rated frequency |
50Hz / 60Hz |
Rated Power Input |
165W |
Door Opening: |
|
Maximum Door Area: |
18m2 |
Maximum Door Weight: | 236kg* |
Minimum Headroom | 57mm |
Rated Operating Time | 4 mins |
Rated Temp | +5o C to +40o C |
Short Term Peak Force | 1100N |
Door travel speed (mm/sec) | 180mm |
Rated Load | 400N |
Nominal Force | 200N (20kg) |
Receiver Type | Multi-frequency |
Receiver Code Storage Capacity | 64 X 4-button Transmitters |
Transmitter Battery | CR2032 (3 Volts) |
Courtesy Light | LED (Light Emitting Diodes) |
Network Connectivity | Requires optional (Smart Phone Control Kit) |
Note: Door must be well balanced and able to be operated by hand as per warranty conditions and AS/NZS 4505:2012
*Gross Door Weight, including all fittings
Warranty - 7 years/20,000 cycle
WARNING! This product contains Lithium coin batteries.
KEEP BATTERIES OUT OF REACH OF CHILDREN. Never allow children to replace button batteries on any device. Swallowing or placing inside any part of the body may lead to severe or fatal injuries in as little as 2 hours or less due to chemical burns and potential perforation of the oesophagus.
If you suspect your child has swallowed a button battery or placed inside any part of the body immediately call the POISONS INFORMATION CENTRE on 13 11 26 for prompt advice. If your child is having any difficulty breathing, contact 000.
Dispose of used button/coin batteries immediately and safely. A battery can still be dangerous even when it can no longer operate the device. Place sticky tape around both sides of the battery and dispose of it immediately out of reach of children in an outside bin or recycle safely.
For more information please review the button battery safety information available on the Australian Competition & Consumer Commission (ACCC) website.
SKU | SDO6Secure |
Model # | Controll-A-Door® S |
Brand | B&D |
Shipping Weight | 7.0000kg |
Shipping Width | 0.250m |
Shipping Height | 0.180m |
Shipping Length | 0.440m |
Unit Of Measure | ea |
Type | Genuine |
