ATA_ATS-1 Sectional Door Opener //HEAD ONLY //
ATA_ATS-1

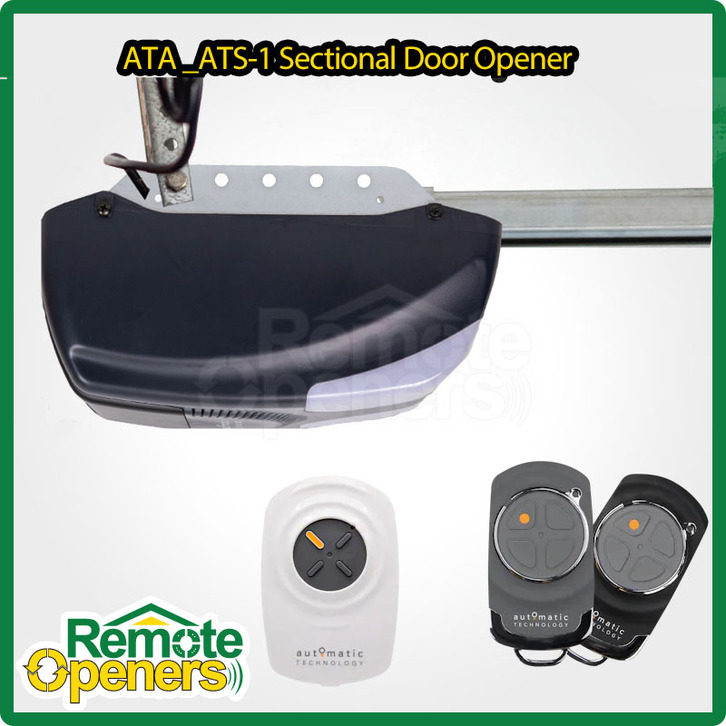

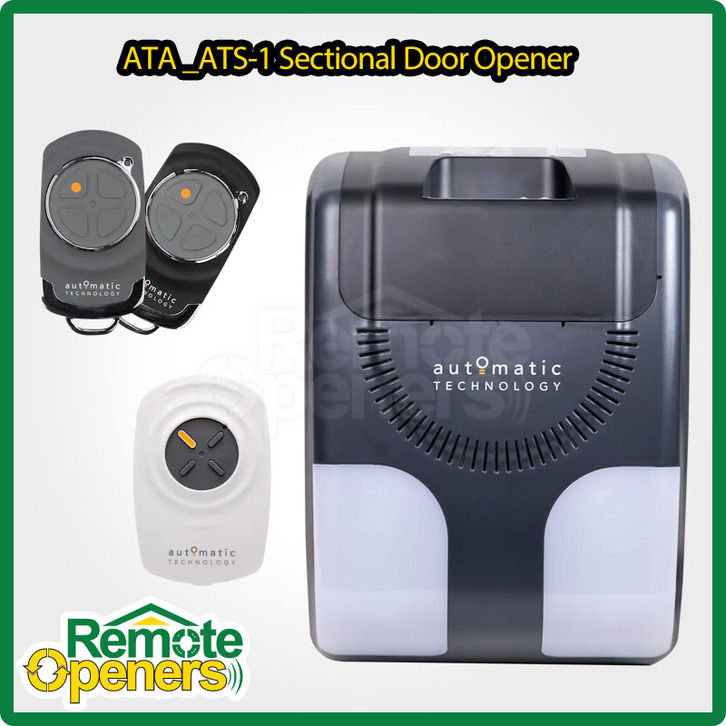

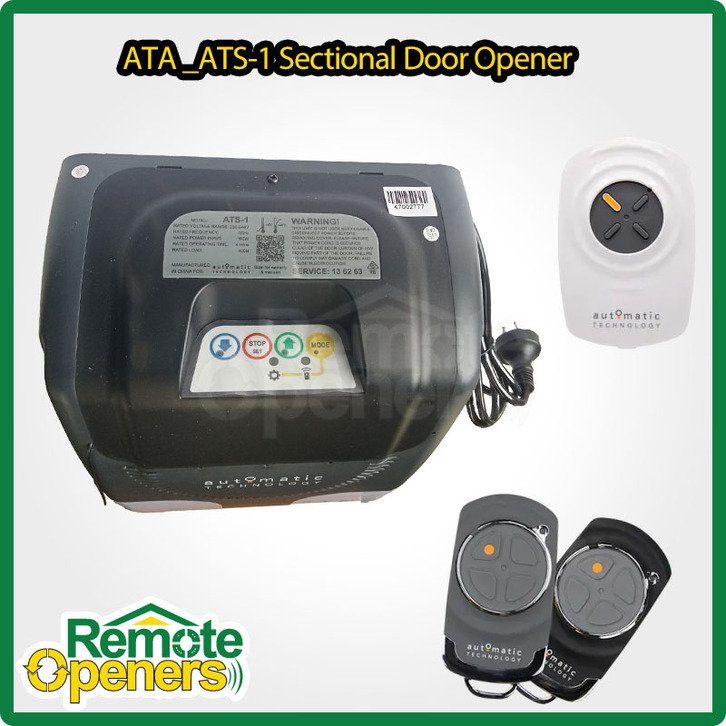

ATA_ATS-1 Sectional Door Opener
Free Standard Delivery Australia-wide only
Incudes
- ATA_ATS-1 Sectional Door Opener
- PTX-6V1 REMOTES X 2
- WTX-6 WALL BUTTON
- MANUAL
Warranty -
5 Years/10,000 cycles warranty
The ATS-1 Opener comes with a five-year warranty (or 10,000 open and close cycles), giving you total peace of mind that your door will go up and down consistently.
Description
The Automatic Technology ATS-1 combines affordable garage door control with the smooth and reliable operation that Automatic Technology is known for.
The ATS-1 is designed for domestic, sectional single or double garage doors up to 15m2. Featuring a 700N DC Motor with soft start and stop, courtesy LED lights and an exceptionally quiet belt c-rail.
Designed to make garage door automation easy.
Specification
| Power | Power Supply | 230V - 240V. 50Hz |
| Rail Headroom | 25mm | |
| Minimum headroom | 57mm | |
| Short Term Peak force | 700N | |
| Rated Force | 400N/40kg | |
| Nominal force | 200N/20kg | |
| Typical Travel Speed | 180mm / per second | |
| Transmitter System | Receiver Type | Multi-frequency UHF FM |
| Receiver Code Storage Capacity | 64 X 4-button Transmitters | |
| Coding System | Triocode 128 | |
| Coding Type | 128 Bit Rolling Code | |
| Additional Features | Number of Code combinations | 3.4 x 10³⁸ Codes |
| Transmitter Battery | CR2032 (3 Volts) | |
| Courtesy Light | LED (Light Emitting Diodes) | |
| Warranty | 5 year / 10,000 cycles |
Key Features
Safety & Security
Auto-reverse functionality
The ATS-1 opener offers an auto-reverse function giving you peace of mind that the door will reverse if it comes into contact with an obstruction. It can also detect any unauthorised attempts to force the door open and resist entry accordingly.
Soft start & stop technology
By utilising a gradual acceleration and deceleration technique at the beginning and end of each cycle, the ATS-1 opener minimises the pressure on both the door and the opener. This helps to prolong the door's lifespan while also providing ensuring a continuous quiet performance.
Fast, quiet motor
Fast, powerful motor
The ATS-1’s DC motor generates a peak pulling force of 650N, allowing it to reliably lift garage doors up to 100kg of weight.
Suitable for installs with low headroom
If you’re dealing with low headroom in your garage then the ATS-1 opener is for you. ATS-1 required just 57mm of clearance between the ceiling and the highest point that the door travels..
Clever Operation
Vacation Mode
Never fret that someone is breaking in to your home again with ATS-1’s Vacation Mode feature. Once in Vacation Mode the ATS-1 opener will be completely locked to all other remotes while you’re away until you return and use your Master remote to unlock it.
Smart Alerts
Service Reminder
Similar to a car, your garage opener needs to undergo regular maintenance to ensure its warranty and functionality are kept in tip-top condition. However, even better than your car, Automatic Technology openers come equipped with an audio and visual warning system that notifies you when maintenance is required, making it easier to keep up with maintenance.
| SKU | ATA_AST_1 |
| Brand | ATA Automatic Technology Australia |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.370m |
| Shipping Height | 0.180m |
| Shipping Length | 0.250m |
| Shipping Cubic | 0.016650000m3 |
