ATA GDO6v4 Gen2 Roller Garage Door Motor Automatic + EAT2 + KPX7v2 Wireless Keypad
Genuine product with fast dispatch! 5 year Warranty
ATA GDO6v4 Gen2 Garage Roller Door Motor Automatic + KPX7v2 Wireless Keypad

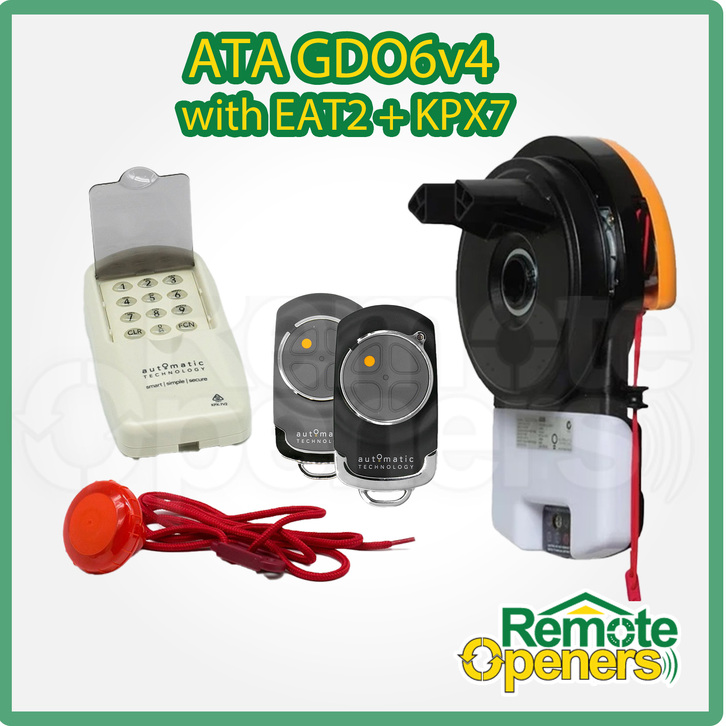

Listing Includes
-

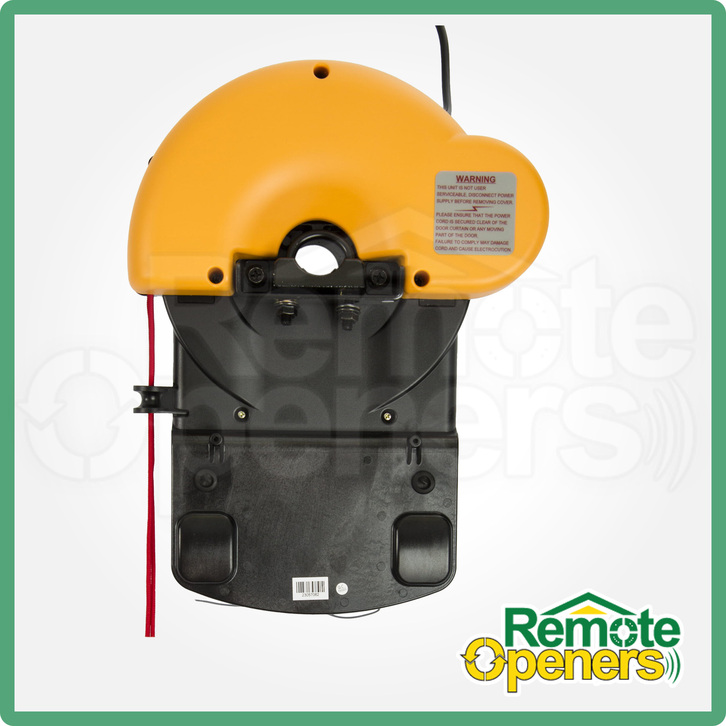

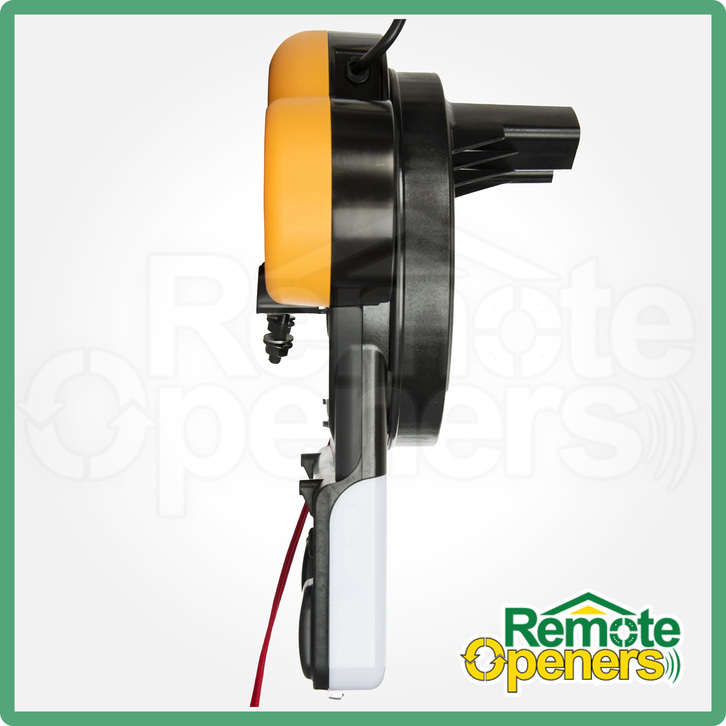

1 x Genuine GDO-6v4 Easyroller Automatic Roller Garage Door Opener
-
2 x ATA PTX6 TrioCode Transmitter Remotes with Batteries
-
1 x Wall Button Remote
-

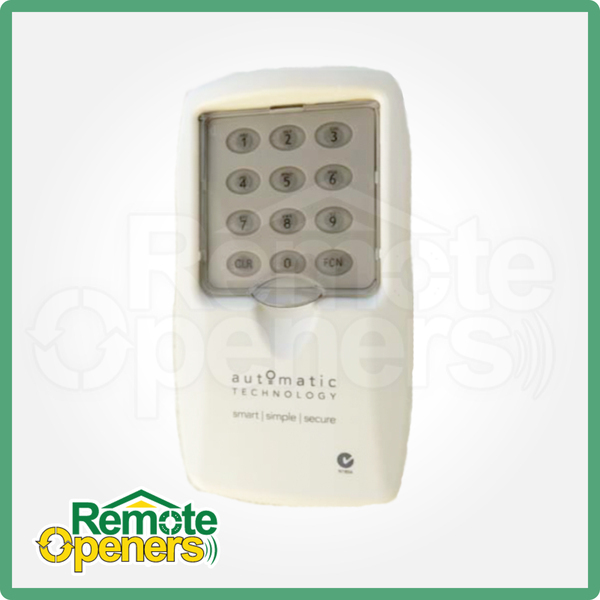

1 x KPX-7v2 Wireles Keypad
-
1 x Weight bar
-
Installation Manual
Features
-
Easy to Install
-
Quiet and Efficient to Run
-
TrioCode Code Hopping Technology
-
ALPS (Automatic Limits Positioning System)
-
ISS (Intelligent Safety Obstruction System)
-
Auto Courtesy Light
-
Vacation Mode
-
PET/ Pedestrian Mode
-
Auto-Clode Mode
-
Manual Operations
Description
The ATA GDO6v4 EasyRoller is an easy to install and operate roller door opener with a strightforward and user-friendly interface. With a sleek design suitable for continuous curtain residential roller doors up to 16.5m2 in size, the EasyRoller offers one of the smallest side room requirements on the Australia Market at just 40mm from door curtain to bracket. Its compact size allows for installations in the tightest of situations without compromising on features and quality. This motor can be mounted on right or left hand side of your garage door.

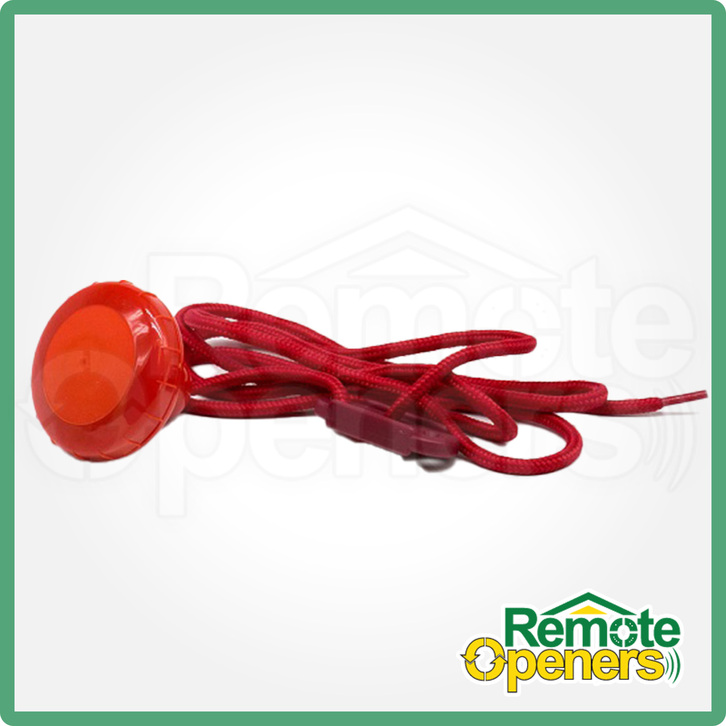

Note: This motor previously came standard with an Emergency Access Tranmitter. This has now been discontinued due to changed with lithium coin battery laws within Australia. The ATA GDO6v3 now comes standard with a plastic emergency pull cord.
Specifications
| Peak pulling force | 600N |
| Maximum Door Weight | Up to 110kg |
| Maximum Recommended Door Size | 16.5m2 |
| Minimum Side Room Requirement | 40mm |
| Motor Type | 24V DC Permanent Magnet |
| Motor Power | 100W |
| Input Voltage |
230/240 Volts AC
|
| Operating Frequency |
Multi-frequency UHF FM (433.47, 433.92 & 434.37MHz)
|
| Coding System | TrioCode™128, code hopping |
| Code Combinations | 3.4x1038 code combinations |
| Storage Capacity |
Up to 64 memory registers
|
| Courtesy Light | 2 x LED |
| Safety Beam Compatibility | 2 x Wireless/2-wire Safety Beams |
| Smart Phone Control Kit | Compatible |
Warranty - 7 Years Manufacturer's Warranty.
WARNING! This product contains Lithium coin batteries.
KEEP BATTERIES OUT OF REACH OF CHILDREN. Never allow children to replace button batteries on any device. Swallowing or placing inside any part of the body may lead to severe or fatal injuries in as little as 2 hours or less due to chemical burns and potential perforation of the oesophagus.
If you suspect your child has swallowed a button battery or placed inside any part of the body immediately call the POISONS INFORMATION CENTRE on 13 11 26 for prompt advice. If your child is having any difficulty breathing, contact 000.
Dispose of used button/coin batteries immediately and safely. A battery can still be dangerous even when it can no longer operate the device. Place sticky tape around both sides of the battery and dispose of it immediately out of reach of children in an outside bin or recycle safely.
For more information please review the button battery safety information available on the Australian Competition & Consumer Commission (ACCC) website.
| SKU | GDO-6v4_EAT2_Keypad_ |
| Model # | GDO-6v4 |
| Brand | ATA |
| Shipping Weight | 9.7000kg |
| Shipping Width | 0.180m |
| Shipping Height | 0.410m |
| Shipping Length | 0.330m |
| Shipping Cubic | 0.024354000m3 |
| Unit Of Measure | ea |
| Type | Genuine |
