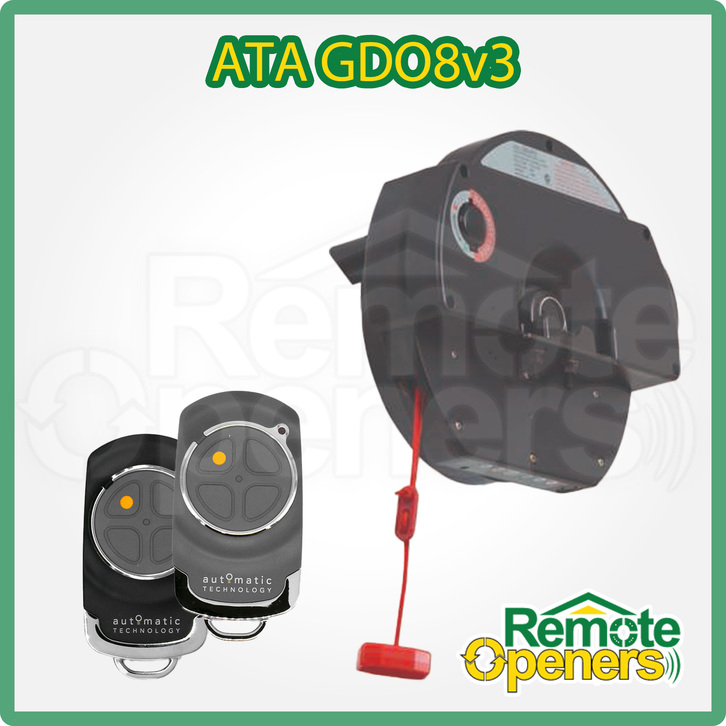

ATA GDO-8v3 Shed Master Roller Garage Door Opener

Listing Includes

  • 1 x GDO-8v3 Shed Master Roller Garage Door Opener

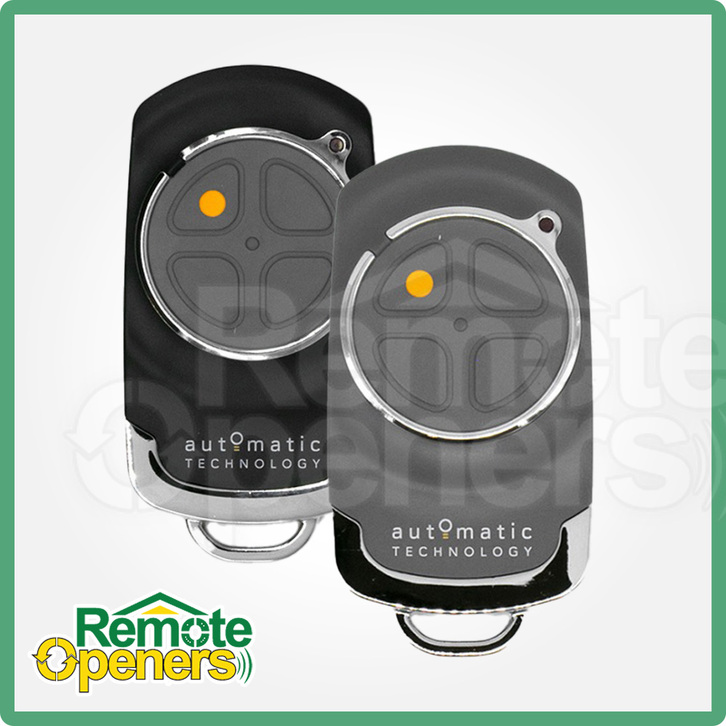

  • 2 x  ATA PTX6 Triocode Remotes with Batteries

  • 1 x Weight Bar

  • 1 x Accessories Pack

  • 2 x Locking Bar Covers

  • 1 x Installation Manual

  • 1 x FREE Delivery


Features

  • Easy to Install

  • Slim-Fit, Weather-Resistant Design

  • Powerful and quiet DC motor

  • S-ALPS (Semi-Automatic Limits Positioning System)

  • Overload indicator

  • ISS (Intelligent Safety Obstruction System)

  • Lockable Control Panel

  • Manual Operation

  • Ventilation Mode

  • Vacation Mode

  • Service Reminder

  • Secure Lockout System

  • Suits Door Sizes up to 15m2

Description

With a tough, IP24 rated weather resistant housing, the Shed Master® is perfect for exposed applications like perimeter doors and open carports. With a keyed lockout for added security and slim fi t design, it is ready for harsh and testing environments. And just because it’s rugged doesn’t mean this roll-up door opener doesn’t have brains. Standard features also include Intelligent Safety System, Door Profiling and Automatic Technology’s own high security TrioCode™128 transmitter system. This opener will tell you when it’s due for a service and prevents unauthorised entry with a built-in lockout system. If you need a solution to last in all weather conditions then this is the opener for your door.

Specifications

Peak pulling force 550N
Maximum Door Weight Up to 100kg
Maximum Recommended Door Size 15m2
Minimum Side Room Requirement 40mm
Motor Type 24V DC Permanent Magnet
Motor Power 100W
Input Voltage
   230V/240V AC 50Hz
Operating Frequency
 Multi-frequency UHF FM (433.47, 433.92 & 434.37MHz)
Coding System Code hopping (Non-linear encryption algorithm)
Code Combinations 3.4x1038 code combinations
Storage Capacity
      8 x 4 Button Transmitter Codes

Courtesy Light Optional
Safety Beam Compatibility 1 x 3-wire Safety Beams
Weather Resistance Rating IP 24 Rated

Warranty - 2 year/5,000 cycles Manufacturer's Warranty.


WARNING! This product contains Lithium coin batteries.

KEEP BATTERIES OUT OF REACH OF CHILDREN. Never allow children to replace button batteries on any device. Swallowing or placing inside any part of the body may lead to severe or fatal injuries in as little as 2 hours or less due to chemical burns and potential perforation of the oesophagus.

If you suspect your child has swallowed a button battery or placed inside any part of the body immediately call the POISONS INFORMATION CENTRE on 13 11 26 for prompt advice. If your child is having any difficulty breathing, contact 000.

Dispose of used button/coin batteries immediately and safely. A battery can still be dangerous even when it can no longer operate the device. Place sticky tape around both sides of the battery and dispose of it immediately out of reach of children in an outside bin or recycle safely.

For more information please review the button battery safety information available on the Australian Competition & Consumer Commission (ACCC) website.

SKU GDO-8v3a
Model # GDO-8v3
Brand ATA
Shipping Weight 8.5000kg
Shipping Width 0.335m
Shipping Height 0.225m
Shipping Length 0.305m
Shipping Cubic 0.022989000m3
Unit Of Measure ea
Type Genuine
